Decoration and insulation integrated board |
|

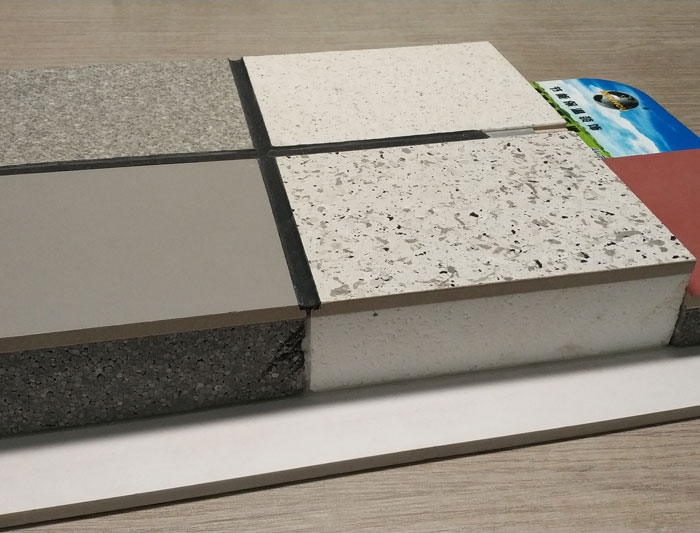

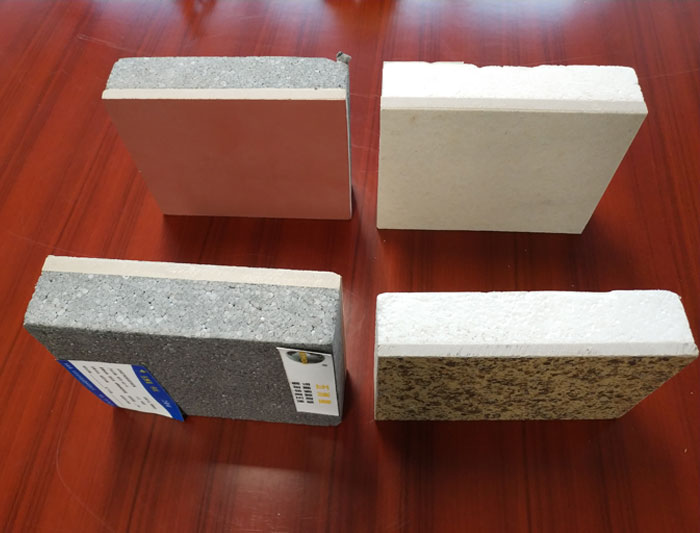

It is made up of insulation layer, adhesive and veneer coating layer, the insulation layer is EPS, Graphite EPS, PU or XPS. The veneer is classified by fluorocarbon metal paint, fluorocarbon solid paint, real stone paint, flower color paint, imitation stone paint, texture coating, sand wall, rock flake lacquer, culture stone, super thin stone and other decorative surface.

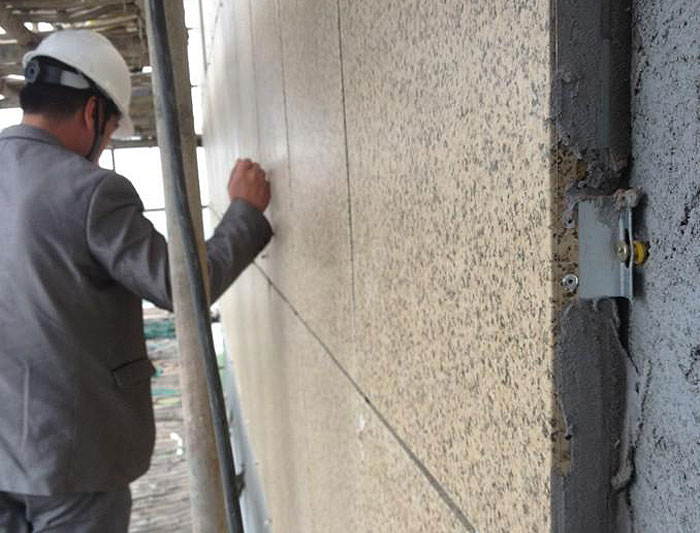

It is not only suitable for exterior wall insulation and decoration of new buildings, but also for energy saving and decoration of old buildings. It can be applied both in kinds of public buildings and residential buildings.

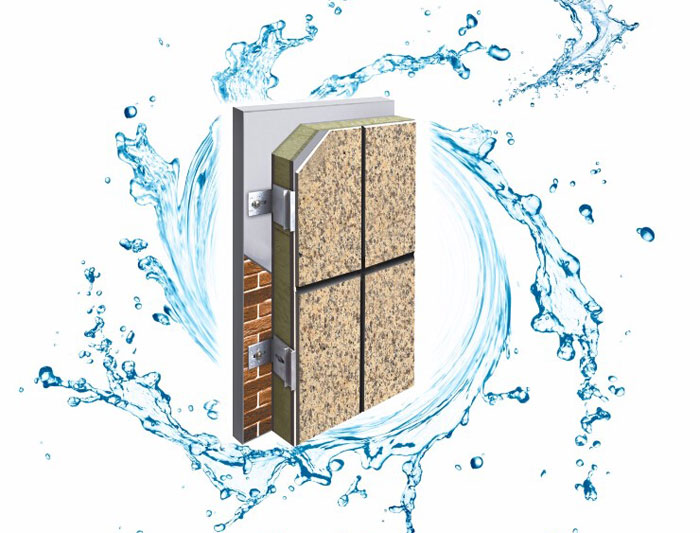

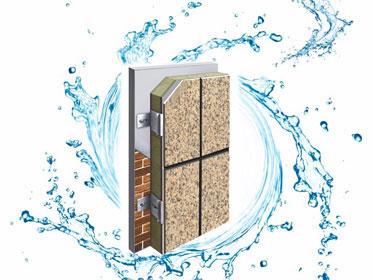

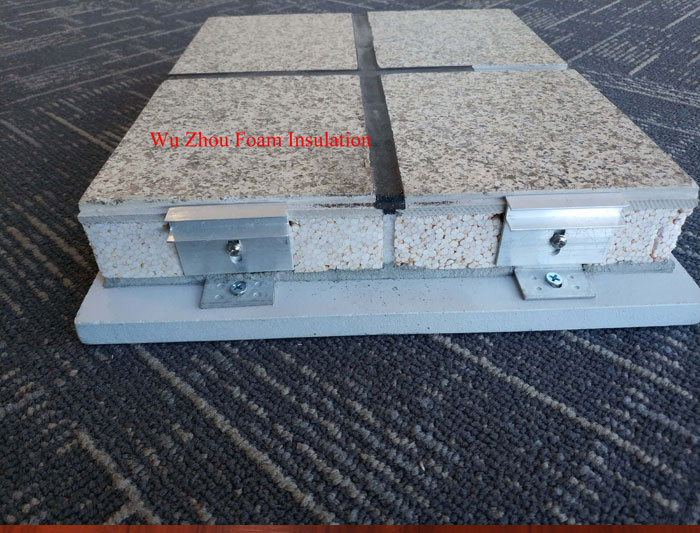

The decoration and insulation integrated board is an excellent thermal insulation and decoration system which is placed on the surface of the building wall. It is the real integration of buildings and insulation. The integrated board act as the main part, through the interaction of the similar compatible adhesive system and the main body of the concave-convex fixing system£¬and coordinated with air layer processing system and waterproof system, it can reach the beautiful decorative effect of energy saving, decoration and building integration .
Technical Item |
Performance index |
Decoration
board |
Quality per unit area? (Kg/m2) |
¡Ü18 |
Bending load |
¡Ý1.5times the weight of board |
Breaking strength (Mpa) |
¡Ý15MPa |
Impact£¬J |
¡Ý10J |
Water absorption£¬% |
¡Ü2.0% |
Wet Expansion£¬% |
¡Ü0.15% |
freeze-thaw resistance (80cycles) |
?No abnormal Pass |
Flame retardant grade, grade |
B1 flame retardant ¨CA non-combustible |
Thermal conductivity£¬W/(m.k)25¡æ |
0.023-0.042(according to the configuration of insulation layer) |
Decorative exterior |
appearance |
High-end stone-like decorative finish / Fluorine carbon aluminum decorative finish |
Adhesion, level |
¡Ü1 level |
Stain resistance£¬% |
¡Ü10% |
Chemical resistance (acid salt) |
No abnormal pass as standard |
salt spray resistance |
500h no abnormal pass |
Accelerated aging resistance |
2000h No abnormal pass |
|
|
|
